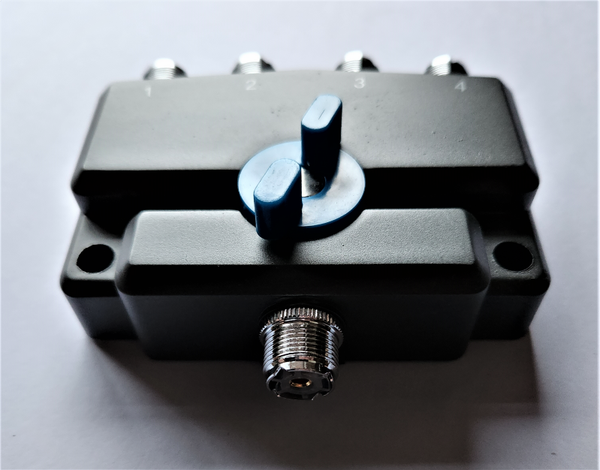

K-PO / KAS 4 Way antennaswitch PL
€ 92,50
Specifications:
Connector Type:
Frequency Range: DC-900 MHz
Connector Type: Input 1x SO-239 Output 2x N-Connector Female type + 2x SO-239
Power Range:
DC-30MHz : 1.5 KW
30MHz-200MHz : 1.0 KW
200MHz-500MHz : 500W
500MHz-900MHz : 250W
900MHz-1,5GHz :
Insertion Loss:
DC-500MHz : >=0.1dB
500MHz-900MHz : >=0.2dB
900MHz-1.5GHz :
Output Port Isolation:
DC-500MHz : <=60dB
500MHz-900MHz : <+55dB
900MHZ-1.5GHz :
Vswr:
DC-500MHz : >=1.15
500-900MHz : >=1.20
900MHz-1.5GHz :
Weight:
905 gram
