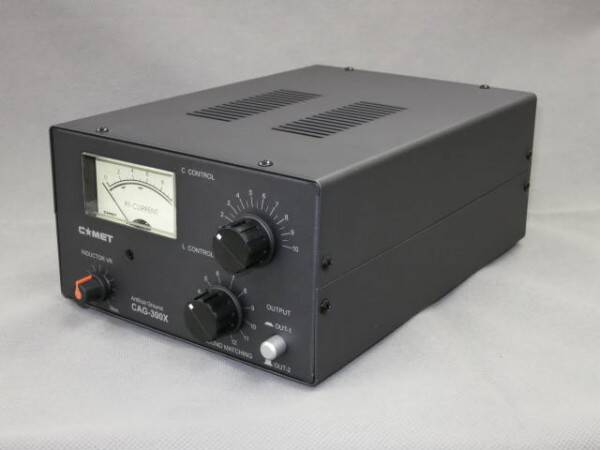

Comet CAG-300X

The Comet CAG-300X is an artificial ground to improve the reception and transmission of shortwave antennas. It creates a tuned counterpoise, an excellent choice for places where it is difficult to obtain a good earth ground, like apartments, upper floors and so on.

The Comet CAG-300X is suitable for use with ground type antennas, such as (long-) wire antennas and antenna whips. Please note that it can not be used with non-ground type antennas, such as dipoles, loop- and Yagi antennas.

Important, the Comet CAG-300X can not be used as a substitute for the protective ground, Lightening Protection System. Connect the Comet CAG-300X to the protective earth, such as an outlet with a protective earth terminal or ground surface as needed.

Output connector: 2x Binding posts

Length: 280 mm

Height: 100 mm

Width: 165 mm

Weight: 1700 gram

Backlight display / meter: Yes

Voltage: 13.8 Volt, for display lightning only
